PSO using a simple test with ruby

×

Overview

module url N/A
git repository https://bitbucket.org/arrizza-public/ai-pso-simple-test-rb
git command git clone git@bitbucket.org:arrizza-public/ai-pso-simple-test-rb.git
verification report https://arrizza.com/web-ver/ai-pso-simple-test-rb-report.html
version info
OS Language #Runs Last Run Cov%
Ubuntu 24.04 noble Ruby 3.2.3 348 2025-09-06 100.0%

Summary

The PSO (Particle Swarm Optimization) is a method to search a very large solution space efficiently. It is based on observations of ants and other social animals and how they search efficiently for food.

The original code was from AI Gemini, see original_simple_test.rb. I took that, refactored it, added the ability to change the run parameters more easily.

Solution space

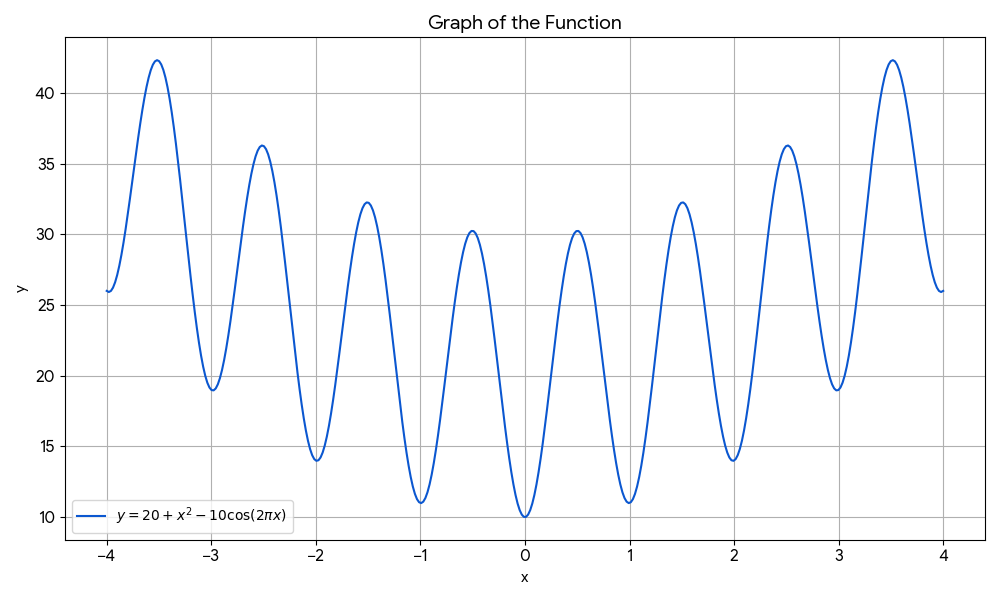

The graph of the function used for this test is:

function graph

The function has many local minima and maxima and so should pose the best challenge to the PSO algorithm. In ut/mock_obj_max_func.rb there is an equivalent, inverted function which can be used for finding the global maxima.

Note the global minima is at 0.0. Therefore, the main.rb defines the better?() method to find minimum values.

Note also that this formula can be used with multiple dimensions. Changes @dimensions = 3 to however many dimensions you want to try.

Note with 500 iterations:

  • 2 dimensions: finds 0.0 usually within 100 tries; periodically needs 1 restart
  • 3 dimensions: finds 0.0 usually within 200 tries; may need 1 or 2 restarts
  • 4 dimensions: finds 0.0 usually within 400 tries; may need several restarts, may fail to find 0.0
  • 5 dimensions: finds 0.0 usually within 500 tries; fails to find 0.0 in 500 tries about half the time
  • more than 5 dimensions, fails nearly every time

Restart

I added the ability for the search to restart. The original code could get into a local minima/maxima and therefore not find the global minima/maxima. The restart solves this by detecting that scenario and then putting the particles into new random positions. while keeping the current global best position.

When I used the original algorithm with more than 2 dimensions, it failed to find 0.0 in 500 iterations. But adding the restarts increased the odds quite a bit.

How to use

./doit     # run with default 3 dimensions
./do_ut    # run unit tests

Typical output

Using 3 dimensions.

        0] Best:  0.064155, -1.163064,  1.838379 cost: 15.071207
       50] Best:  0.000579,  0.001134,  0.992355 cost:  0.996625
      100] Best:  0.000003,  0.000007,  0.994955 cost:  0.994959
      119] restarting particles
      149] restarting particles
      150] Best: -0.000000, -0.000000,  0.994959 cost:  0.994959
      200] Best:  0.000324, -0.001229,  0.000252 cost:  0.000333
      222] --> found 0.0
      250] Best: -0.000005, -0.000003, -0.000003 cost:  0.000000
      252] restarting particles
      282] restarting particles
      300] Best: -0.000004,  0.000001,  0.000001 cost:  0.000000
      312] restarting particles
      342] restarting particles
      350] Best: -0.000004,  0.000001,  0.000001 cost:  0.000000
      372] restarting particles
      400] Best: -0.000004,  0.000001,  0.000001 cost:  0.000000
      402] restarting particles
      432] restarting particles
      450] Best: -0.000004,  0.000001,  0.000001 cost:  0.000000
      462] restarting particles
      492] restarting particles
      500] Best: -0.000004,  0.000001,  0.000001 cost:  0.000000

     Optimization Complete!
     Final Global Best posn: -0.000004,  0.000001,  0.000001
     Final Global Best cost: 0.0

Using 6 dimensions:

        0] Best: -4.026149, -4.886856,  1.124305, -3.020317, -2.001549,  0.024360 cost: 60.138192
       50] Best: -0.981231, -0.969007,  0.089159,  0.988221,  0.974176, -1.084151 cost:  8.321972
      100] Best: -0.990757, -0.995370,  0.004921,  0.993943,  0.992309,  0.002610 cost:  3.991122
      150] Best:  0.043085, -0.994881,  0.000128,  0.967644,  0.984158,  0.002191 cost:  3.522299
      200] Best:  0.000281, -0.995278, -0.000520,  0.995213,  0.994688, -0.000048 cost:  2.984994
      250] Best: -0.003346,  0.000617,  0.001736,  0.994533,  0.992577, -0.001992 cost:  1.994760
      300] Best: -0.000031,  0.000087,  0.000026,  0.994891,  0.994960,  0.000001 cost:  1.989921
      334] restarting particles
      350] Best:  0.000001, -0.000001, -0.000001,  0.994961,  0.994960,  0.000001 cost:  1.989918
      364] restarting particles
      394] restarting particles
      400] Best:  0.000001, -0.000001, -0.000001,  0.994961,  0.994960,  0.000001 cost:  1.989918
      424] restarting particles
      450] Best:  0.000001, -0.000001, -0.000001,  0.994961,  0.994960,  0.000001 cost:  1.989918
      454] restarting particles
      484] restarting particles
      500] Best:  0.000001, -0.000001, -0.000001,  0.994961,  0.994960,  0.000001 cost:  1.989918

     Optimization Complete!
     Final Global Best posn:  0.000001, -0.000001, -0.000001,  0.994961,  0.994960,  0.000001
     Final Global Best cost: 1.989918

- John Arrizza
